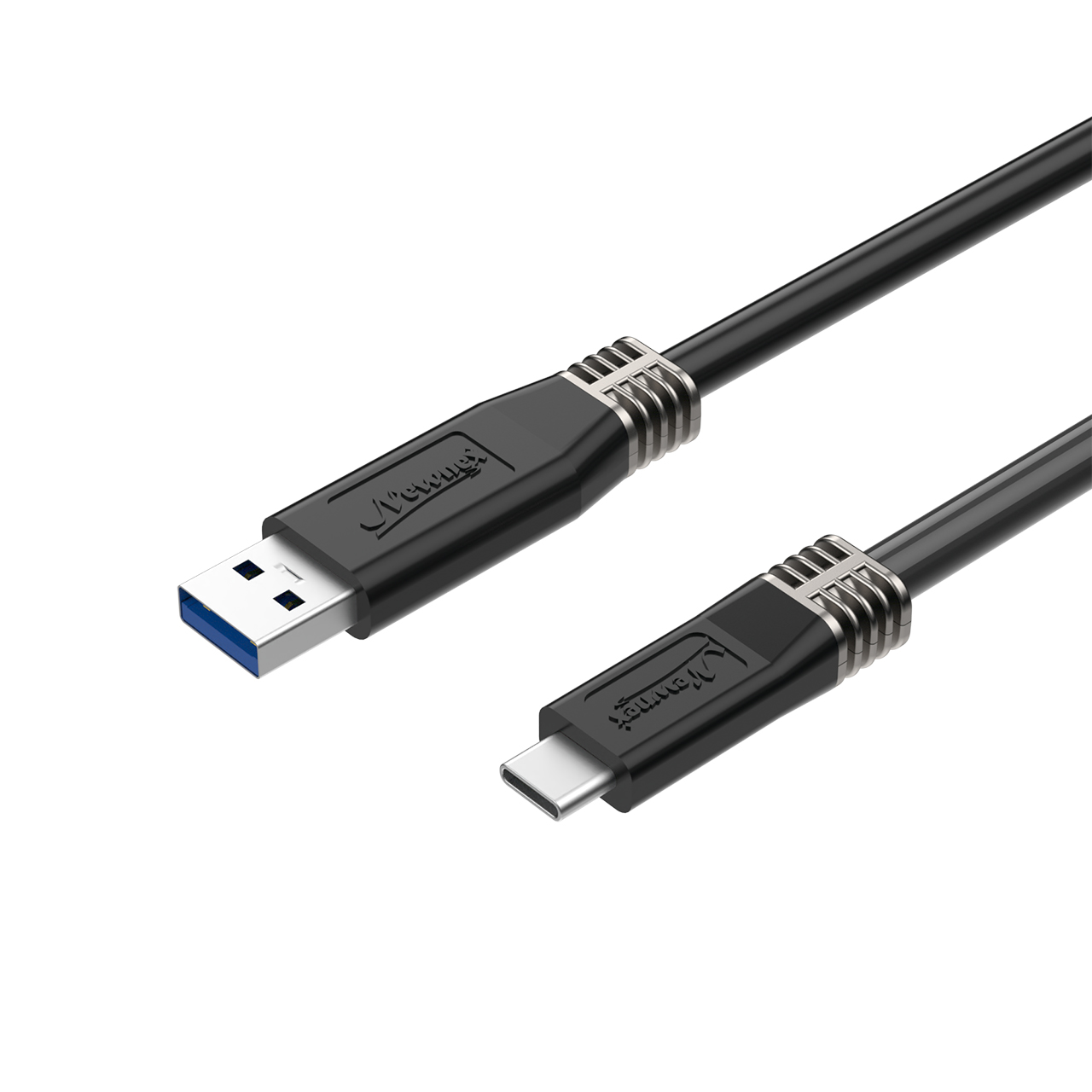

Active USB-C Extension Cable
USB 3.2 Gen 1 (USB 3.0), A to C, 5V/1.5A Enhanced Bus Power, up to 30m
Introducing the FireNEX™-uLINK-C2, the latest active USB-C extension cable from Newnex. Engineered to extend USB 3.2 Gen 1 (USB 3.0) data up to 5Gbps and deliver enhanced USB bus power at 5V/1.5A over distances up to 30m (100ft).

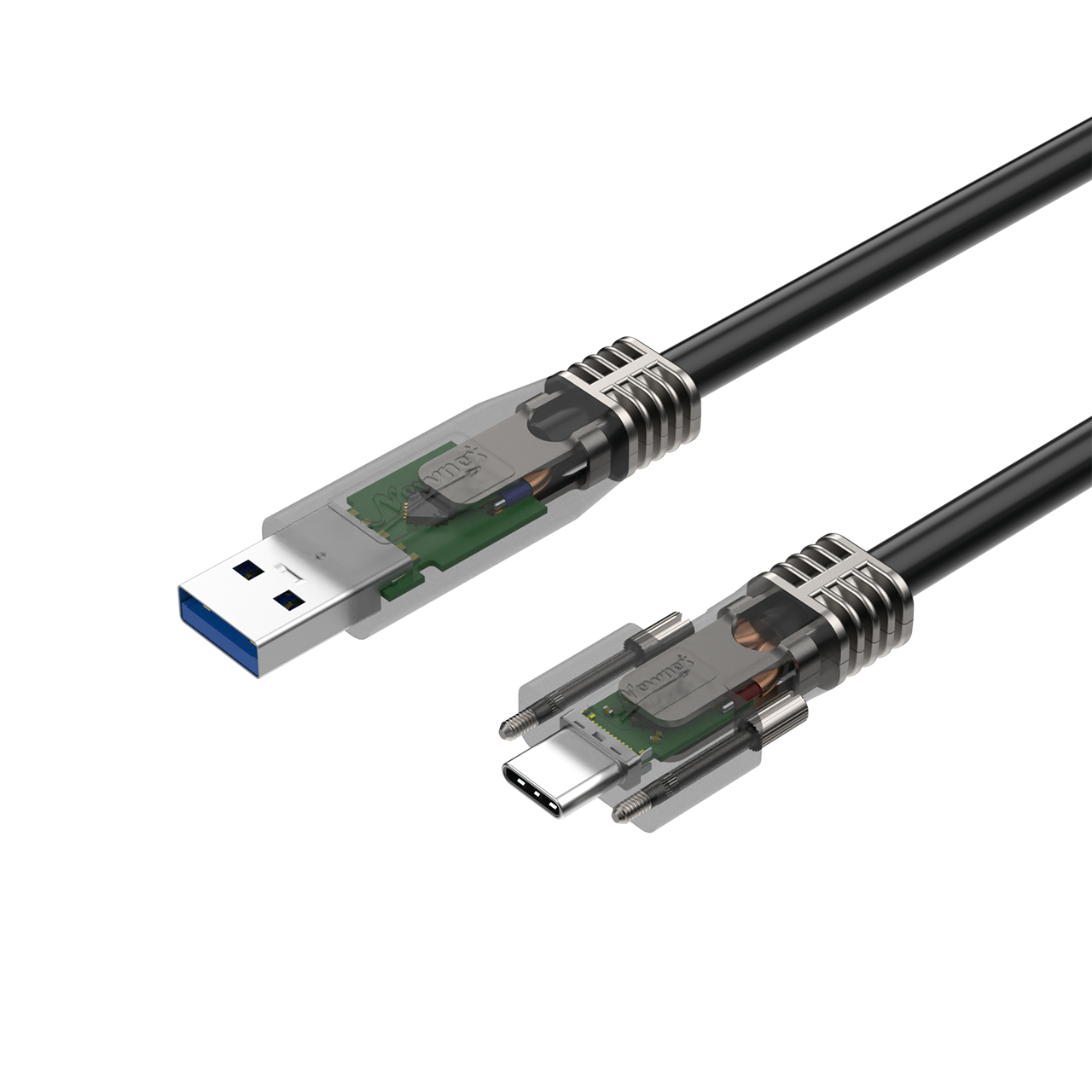

The FireNEX™-uLINK-C2 features a unique design with a repeater module embedded within the USB connectors, making it as compact and convenient as a regular USB cable. Its advanced USB repeater technology amplifies the 5Gbps USB signal, ensuring reliable performance and connectivity over extended distances.
When paired with Newnex’s USB 3.2 high-flex cable, this unique cable design allows for easy installation within drag chains or robotic arms without worrying about damaging the repeater unit. The high-flex version FireNEX™-uLINK-C2 can sustain a dynamic bending life of up to 6 million cycles.
This versatile cable also supports enhanced USB bus power up to 5V/1.5A and USB 2.0/1.1 backward compatibility, making it ideal for applications in computer vision, professional AV, medical imaging, and various other fields.
Key Features
- Extend USB 3.2 data up to 30m (100 ft.) for USB-C device
- USB 3.2 Gen 1 (USB 3.0) transfer support up to 5Gbps data rate
- Enhanced bus power, deliver power over USB cable at 5V/1.5A max. without additional power source
- USB 2.0/1.1 Backward Compatible
- Plug and Play, no additional driver required
- Embedded repeater within USB connectors, conduit friendly

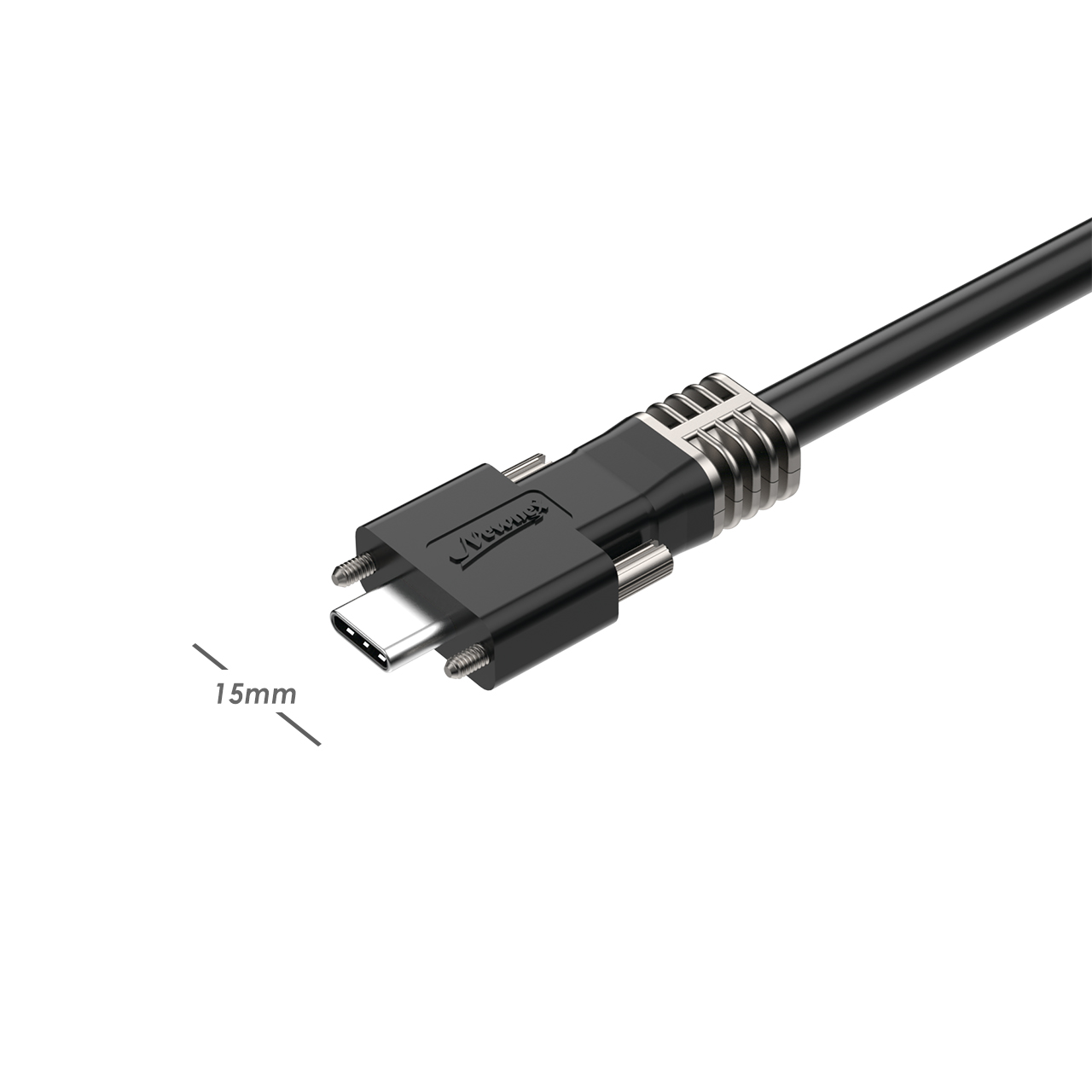

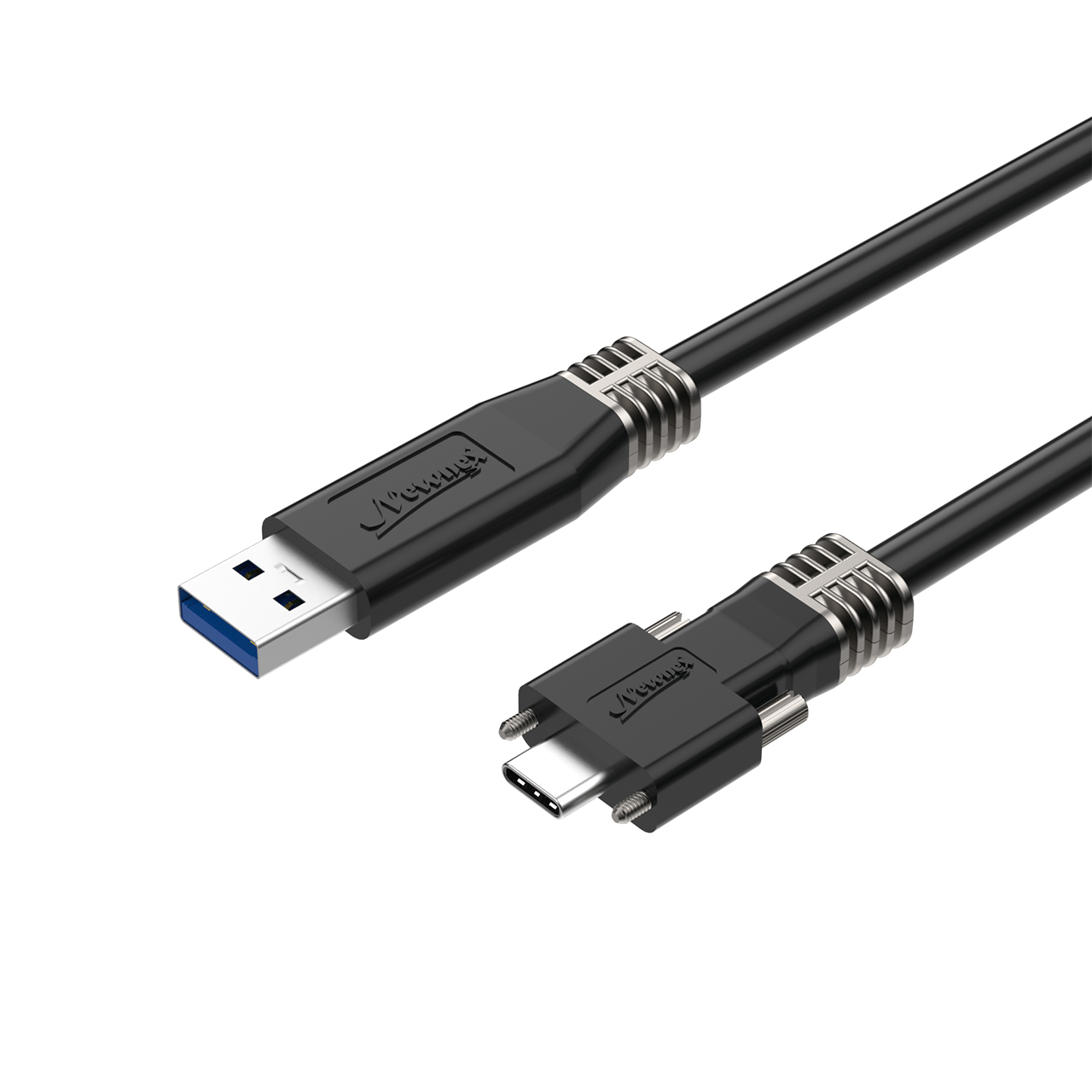

- USB-IF standard Type-C locking connector available
- Custom length available upon request
Ordering Information
Specifications
Application Diagram
Helpful Links
- FireNEX-uLINK-C2 Data Sheet
- Explore USB Extension for Video Conferencing
- Explore USB Extension for 3D Image Capture
- Explore USB Extension for Machine Vision
- Explore USB Extension for Professional Photography
- Discover the Maximum Length of USB Cable
FAQ
Q: Is FireNEX™-uLINK-C2 backward compatible with USB 2.0?
A: Yes, FireNEX™-uLINK-C2 is compatible with USB 2.0/1.1 data transfer.
Q: What is the maximum length of FireNEX™-uLINK-C2?
A: The FireNEX™-uLINK-C2 supports passive USB3 cables up to 5 meters. Compatibility with additional active cables is
application-dependent; please contact Newnex for more information.
Q: Does FireNEX™-uLINK-C2 support USB PD (bus power) for the Orbecc Femto Bolt camera or Azure Kinect?
A: Yes, the enhanced bus-power feature of FireNEX™-uLINK-C2 can support bus-power delivery to the Orbbec Femto Bolt or
Microsoft Azure Kinect cameras.
Q: Is FireNEX™-uLINK-C2 plenum rated?
A: Currently, FireNEX™-uLINK-C2 active cables are not plenum rated. When installing a FireNEX™-uLINK cable in plenum space,
users can find a proper way, such as using a conduit, to intall the cable in order to meet the installation code.
